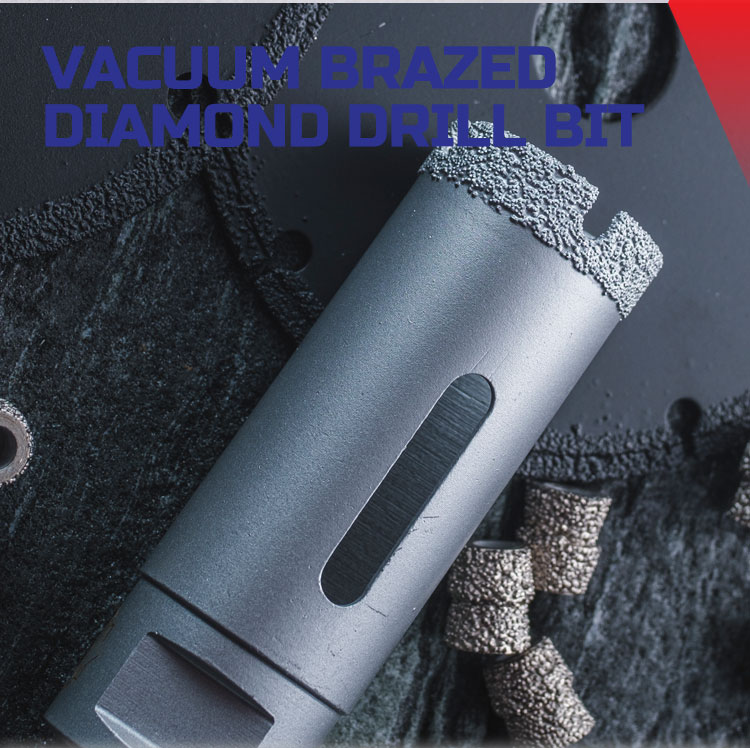

Core broca de diamante soldada al vacío
Características de los productos:
1. High concentration of exposed diamond ensures long life and fast drilling;
2. Suitable for drilling reinforced concrete, natural stones, bricks, blocks & rock.
Especificación de producción:
Diámetro(Inch/mm) | Altura del segmento(mm) | Grano(#) | Conexión |
1/4"/6.3 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
3/8"/9.5 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1/2"/12.7 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
5/8"/15.9 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
3/4"/19.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1"/25.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1-1/8"/29.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1-1/4"/32.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1-3/8"/35.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1-1/2"/38.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1-5/8"/41.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
1-3/4"/45.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
2"/51.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
2-1/4"/57.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
2-1/2"/63.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
2-3/4"/70.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
3"/76.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
3-1/2"/90.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
4"/100 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
4-4/5"/120 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G1/2" |
Otras especificaciones están disponibles bajo petición.
